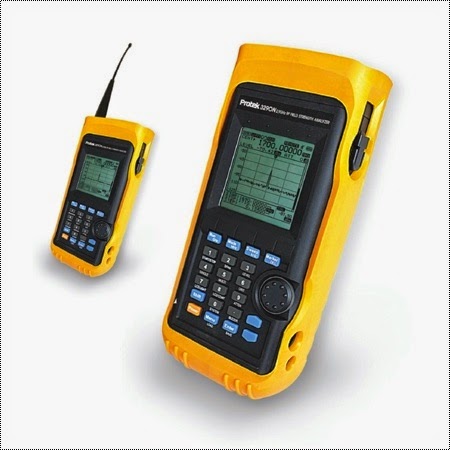

Protek 3290N Hand-Held 2.9 GHz RF Signal Strength Analyzer
Harga : Rp. 27.700.000
Features
1. Frequency Range: 100KHz ~ 2.9GHz
2. WFM/ NFM/ AM/ SSB modulated signals may be measured
3. 125 Ch/ sec scan rate
4. High sensitivity ( -117dBm max)
5. Signal Levels up to 160Channels can be displayed simulaneously on the LCD
6. Sweep Trigger Mode: Free Run, Single Run, Continuous Wave, Squelch Run
7. Sweep Speed: 500 to 2000msec
8. LED Backlight LCD ( 192x192 dots)
9. PLL tuning system for precise frequency measurement and tuning
10. Built-in Frequency Counter
11. RS232C interface
12. Built-in speaker
13. Hand-Held and battery operated
Major differences between 3290N and 3290
1. Frequency resolution of 3290N was improved compared to 3290.
2. The 3290N provides you with more convenience because it has
additional functions such as Marker and Delta Marker that the 3290 does
not have.
3. The 3290N can be reached to Menu much faster through the changed shortcut key function instead of previous tree structure.
4. The accuracy of 3290N was enhanced through more segmented calibration
5. The 3290N provides the GUI program which is capable of bi-directional control for user.
6. The firmware can be upgraded easily via RS-232C.
7. The reference level can be adjusted.
8. The 3290N has a user-friendly icon display function.
9. The 3290N has more than 10 times of data memory compared with 3290.
Product Information
The Protek 3290N is a high quality hand-held style RF Field Strength
Analyzer with wide band reception ranging from 100kHz to 2900MHz. The
3290N is a compact and lightweight portable analyzer and is a must for
RF technicians. Ideal for testing, installing and maintenance of Mobile
Telecommunications Systems, Cellular Phones, Cordless Phones, CB Radio,
Paging Systems, Cable TV and Satellite TV Reception Systems, Hidden
Camera Detection and Teletapping Detection. Comes with Carrying Case,
Software, Manual, Ear Phone, Coax Cable, Holster, Batteries ( 6AA) ,
RS-232C Cable, Connector, Antenna and Carrying Strap.
Specifications
Frequency
a) Frequency Range : 100 KHz to 2.9 GHz
b) Resolution : 3.1255 kHz
c) Accuracy : TXO: ± 3ppm
d) Display : ± 1.5ppm
e) Modulation : W-FM: 180 kHz
f) N-FM : 12.5 kHz
g) AM/ SSB : 2.4 kHz
h) Step Range : AM/ SSB: 2.5 kHz Fixed
i) FM : Multiple of
j) Span Range : AM/ SSB: 400 kHz Fixed
k) FM : Multiple of 1 MHz
l) Frequency Selection : Start, Stop, Center Span Setup
Amplitude
a) Measurement Range : -20 dBm to -100 dBm
b) Average Noise Level : -100 dBm
c) Amplitude Units : dBm, dBmV, dBuV
d) Reference Level Accuracy : ± 2 dB
e) Reference Level Range : + 20 dBm to -70 dBm
f) Log Scale : 10dB/ DIV
g) Internal Atten : 10dB
Sweep
a) Speed : 500 to 2000 msec
b) Trigger Source : N-FM, W-FM, AM, SSB
c) Trigger Mode : Free Run, Single Run, Continuous Wave, Squelch Run
d) Trigger Level : TTL Level
e) Marker Modes : Marker, Delta Marker
Memory
a) Trace Storage : 100 Waves
b) Setup Storage : 100 States
Display
a) Type : Mono STN LCD
b) Resolution : 192 x 192
c) LCD Backlight : On/ Off/ Auto
d) Mode : Spectrum, Multi Bar
Input
a) RF Input Connector : N Type Female, 50 ohm
b) Maximum Input Power : Max. + 10 dBm, 5V RMS
Frequency Counter
a) Range : 9 MHz to 2.9 GHz
b) Resolution : 7 Digits
c) Sampling Time : 1 sec
d) Input Impedance : 50 ohm
e) Max. Input Voltage : Max. 5 Vrms
f) RF Input Connector : BNC type, 50 ohm
g) Data Memory : 10 data
General Specification
a) Operation Temperature : 0 to 40 deg
b) Humidity : 35RH to 85RH
c) Storage Temperature : -10 to 50 deg.
d) Size : 9.5 " H x 4.0 " W x 1.8 " D
e) Weight : 1.4 lbs
